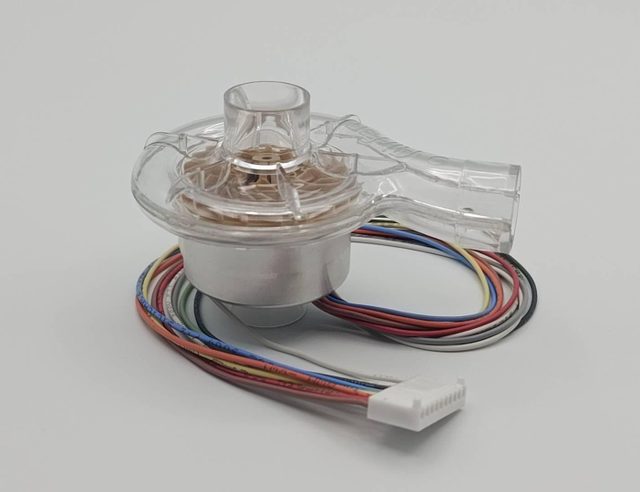

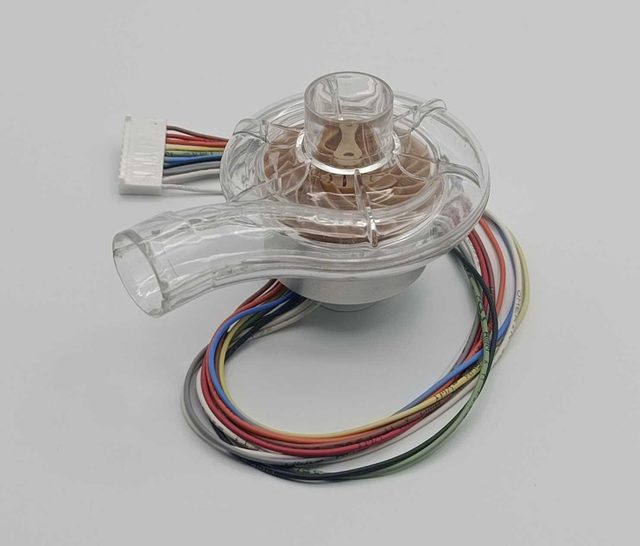

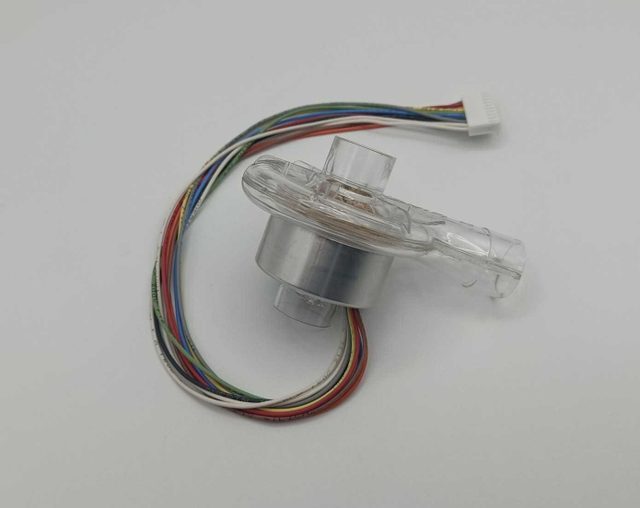

MFA0800 - Micro-Turbine/Blower | +95 / -85 hPa
Airfan's MFA0800 multipurpose design allows operation in positive or negative compression mode, making it adaptable to various high-flow applications.
Suitable for:
- Medical Cough Assist devices
- Fuel Cells (Hydrogen) applications
- Any system requiring high airflows with reliable long-term operating
Document(s) to download
100% OXYGEN COMPATIBILITY
No
MAX STATIC PRESSURE (ΔP)
+95 / -85 hPa
MAX FREE FLOW
660 l/mn
RISE TIME*
< 82 ms
NOISE LEVEL*
P = 30.4 (W) @60 hPa
TYP. POWER CONSUMPTION*
15.2 W
MOTOR COOLING MANAGEMENT
Yes - internal
LIFETIME (L10)*
> 40 000 hours
TYPE
Turbine without external casing
VOLTAGE SUPPLY
24 VDC (nom) | 27 VDC (max)
PRESSURE RANGE (static)
> 90 hPa
Thanks to its patented motor cooling system, the MFA0800 offers a long lifetime, high reliability, and is designed for continuous operation 24/7, 365 days a year.
Key Performance Benefits
- Pressure range up to 80 hPa at 200 l/mn with positive pressure mode
- Up to -75 hPa at 200 l/mn with negative pressure mode
- Non compatible with Oxygen
- Naked turbine designed for integration by the manufacturer
- Specific compressor architecture with a patented motor cooling system allowing to extend the lifetime
- Reliability of the system with patient support 24/7 and 365 days
Technical Highlights
Acceleration (rise time): < 82 ms @ 10A max - from 5 to 60 hPa @30 l/mn
Noise level: < 65 dBa @ 30 hPa @ 1m from air inlet
Power consumption: 15.2W @ 30 hPa @ 30 l/mn
LifeTime: > 40 000 hours - at standard operating conditions
