MFA0020 - HomeCare - BiPAP - CPAP

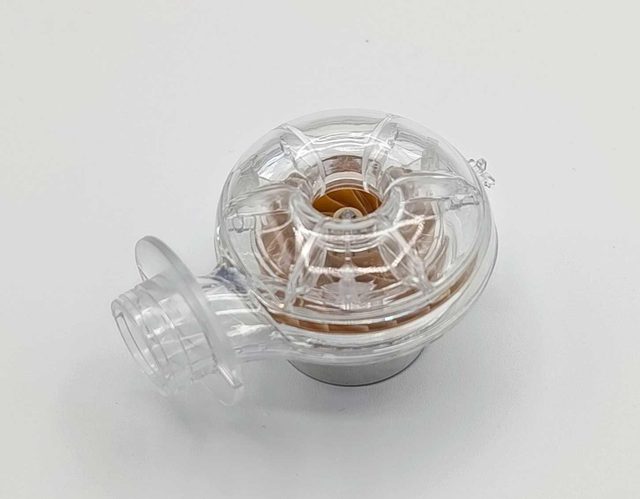

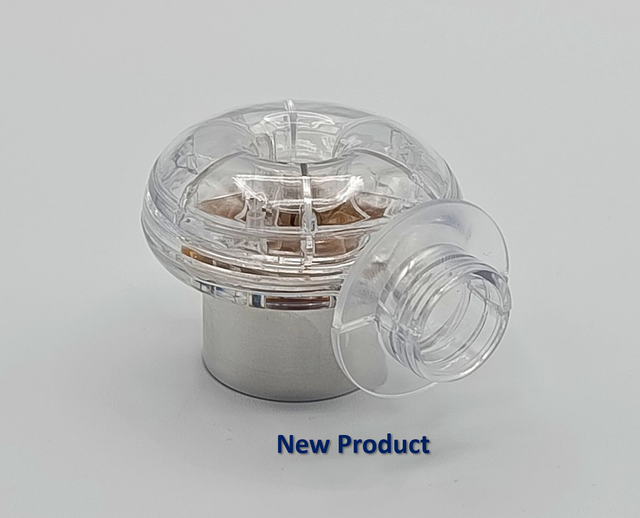

An Airfan Turbine blower dedicated for Home Care ventilators, BiPAP and CPAP.
This turbine blower is a sensorless version based on MFA0205 model and offering similar performances, whilst being more economical. For Home Care ventilators, BiPAP and CPAP.
Document(s) to download
APPLICATION
BiPAP - CPAP
MAX STATIC PRESSURE (ΔP)
80hPa
TYP. POWER CONSUMPTION*
10 W
RISE TIME*
< 68 ms
100% OXYGEN COMPATIBILITY
No (optional Yes with MFA0021)
LIFETIME (L10)*
> 35 000 hours*
VOLTAGE SUPPLY
24 VDC (nom) | 28 VDC (max)
TYPE
Turbine without external casing
MOTOR COOLING MANAGEMENT
Yes - internal
NOISE LEVEL*
< 66 dBa
MAX FREE FLOW
300 l/mn
A turbine blower dedicated for Home Care ventilators, BiPAP and CPAP.
This blower is a sensorless version based on MFA0205 model and offering similar performances , whilst being more economical. For Home Care ventilators, BiPAP and CPAP.
- Naked turbine blower designed for integration by the manfacturer
Technical Highlights
Noise level: < 61 dBa @ 30 hPa - @1m from air inlet
Power consumption: 9.3 W @ 30 hPa @ 30 l/mn
LifeTime: > 25 000 hours at standard operating conditions
